Scaffold Accessories

Cross Brace

Product description: Cross Brace,Scaffold Accessories
INQUIRY

Cross Brace

Material: Q195
Surface treatment： Pre-galvanized
Package： 100 pieces/pack
Loading Port : Tianjin Port
Email：jefferysteel@126.com
Whatsapp：86-15022717390

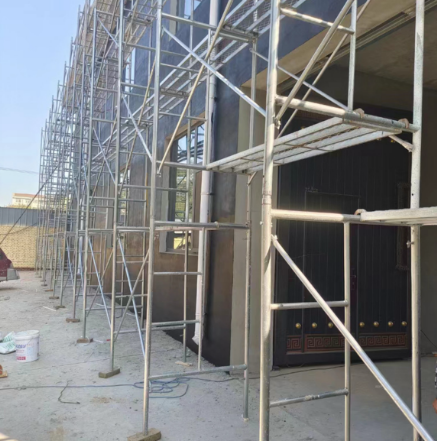

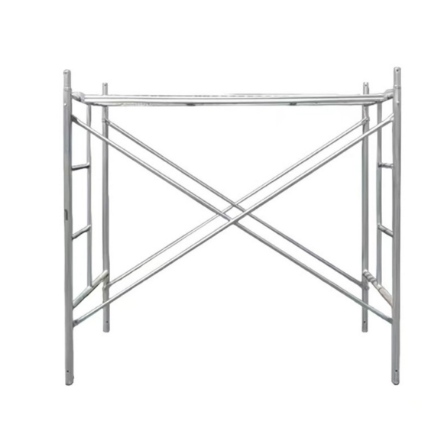

Frame Scaffolding Cross Braces is also called X braces. It is components of All Frame Scaffolding System.

The Cross Braces are used in Pairs and CrossWay to Connect with Vertical Main Frames in Construction Building and Concrete Formwork Temporary Propping

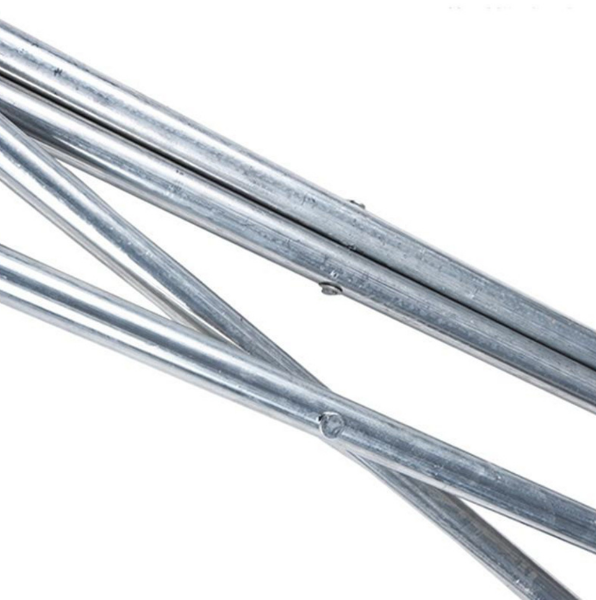

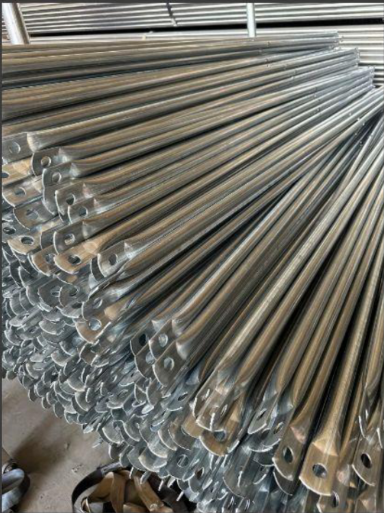

Cross Braces are made from Galvanized Scaffolding Pipe. Galvanized Cross Braces ensure a Longer Life.

According to Frames Distance Horizontally and Lock Pin Distance Vertically. There are various Sizes of Scaffolding Frame Cross Braces. Include 1829 (L) x 1219 (H), 1219 (L) x 1219 (H) etc. We could customize your Cross Braces Sizes.

Frame Scaffolding Cross Braces Specification Show: other sizes are available on request.

Overall Length	Bay Size	Lock Pin Distance	Specification	Weight
2198mm	1829mm	1219mm	OD 22x2248	3.41KG
1928mm	1829mm	610mm	OD 22x1978	3.01KG
1724mm	1219mm	1219mm	OD 22x1774	2.70KG
1363mm	1219mm	610mm	OD 22x1413	2.15KG

We are Tianjin Metal Import And Export Co.,Ltd,A well-established export enterprise with more than 20 years of history,We have a production factory specializing in steelprops.located near the New Port of Tianjin. It has convenient transportation and elegant environment.The products cover the whole country and have been exported to more than 30 countries and regions such as Europe, Middle East, Southeast Asia, North America, South America, Africa etc. They have won high praise from customers with stable quality and good service.I will show you our utmost sincerity.Looking forward to cooperating with you!please feel free to contact us.
Email：jefferysteel@126.com
Whatsapp：86-15022717390
