Square and Rectangular Steel Pipe

Black Square /Rectangular Pipe

Product description: Black Square /Rectangular Pipe
INQUIRY

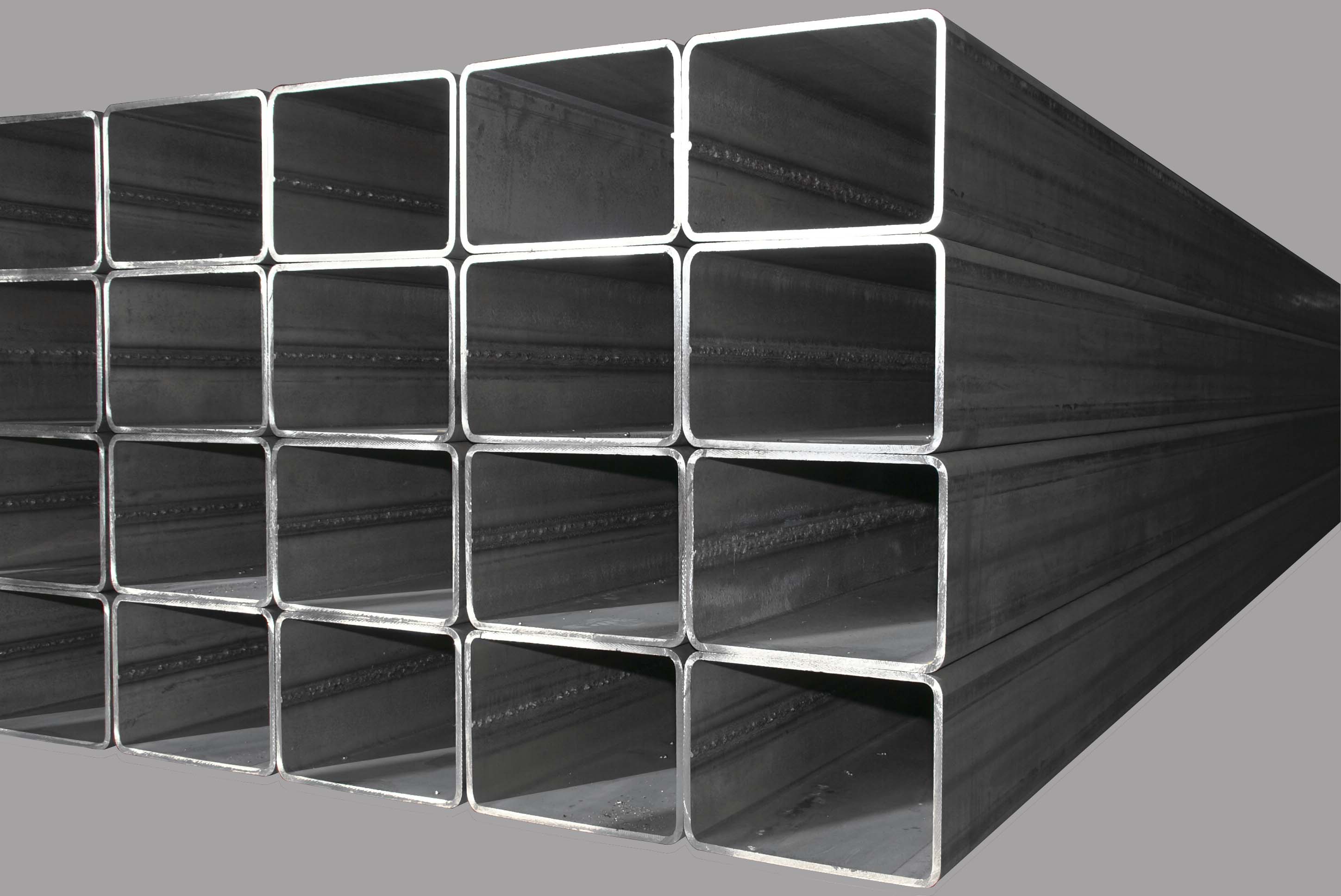

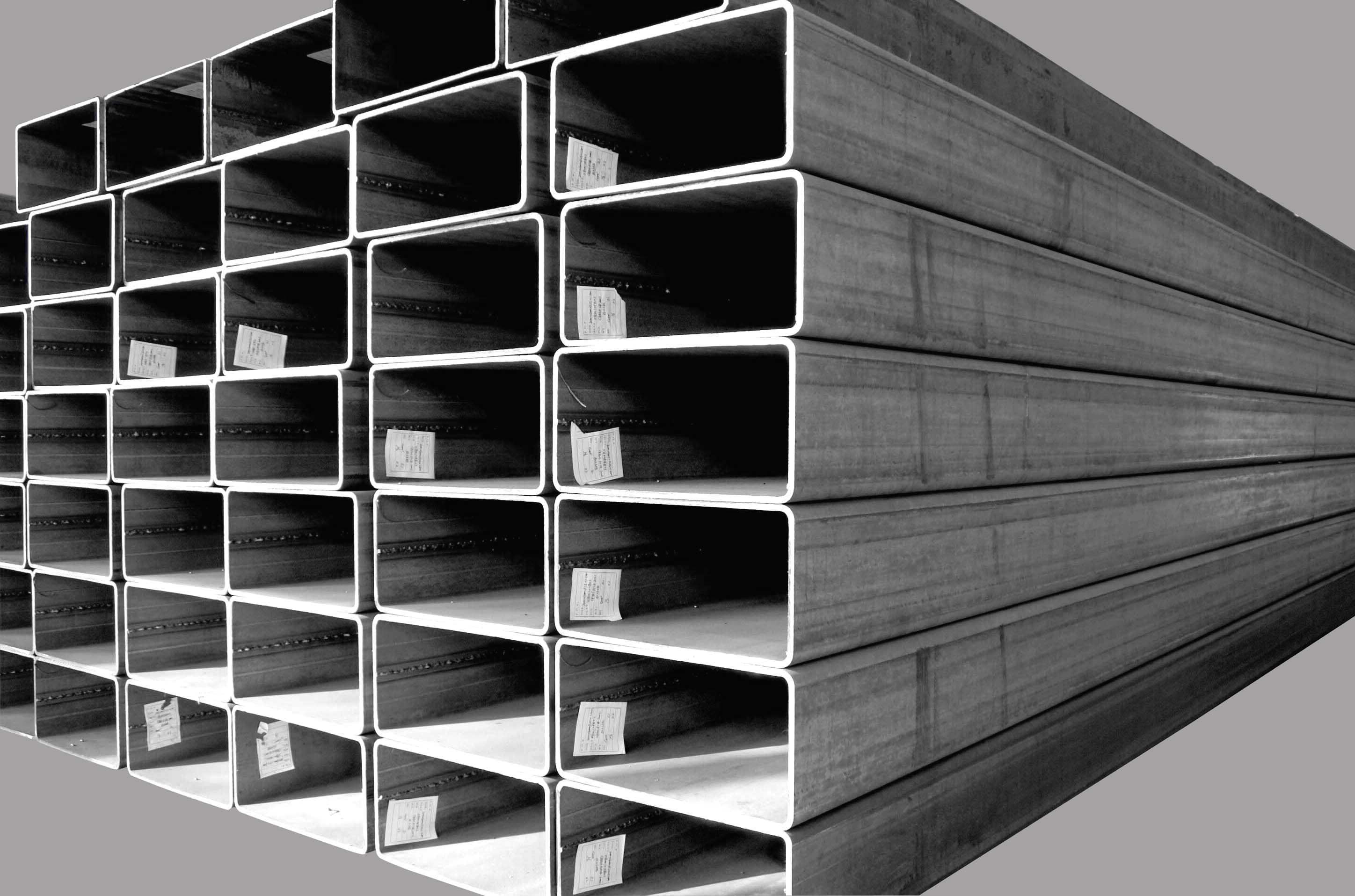

Product:Black square / rectangular pipe

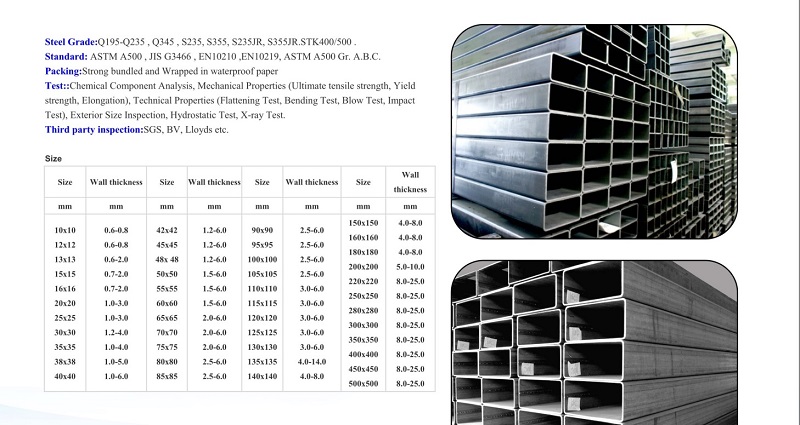

Steel Grade:Q195-Q235 , Q345 , S235, S355, S235JR, S355JR.STK400/500 .

Standard: ASTM A500 , JIS G3466 , EN10210 ,EN10219, ASTM A500 Gr. A.B.C.
Packing:Strong bundled and Wrapped in waterproof paper
Test::Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Third party inspection:SGS, BV, Lloyds etc.

Size

Size	Wall thickness	Size	Wall thickness	Size	Wall thickness	Size	Wall thickness
mm	mm	mm	mm	mm	mm	mm	mm
10x10 12x12 13x13 15x15 16x16 20x20 25x25 30x30 35x35 38x38 40x40	0.6-0.8 0.6-0.8 0.6-2.0 0.7-2.0 0.7-2.0 1.0-3.0 1.0-3.0 1.2-4.0 1.0-4.0 1.0-5.0 1.0-6.0	42x42 45x45 48x 48 50x50 55x55 60x60 65x65 70x70 75x75 80x80 85x85	1.2-6.0 1.2-6.0 1.2-6.0 1.5-6.0 1.5-6.0 1.5-6.0 2.0-6.0 2.0-6.0 2.0-6.0 2.5-6.0 2.5-6.0	90x90 95x95 100x100 105x105 110x110 115x115 120x120 125x125 130x130 135x135 140x140	2.5-6.0 2.5-6.0 2.5-6.0 2.5-6.0 3.0-6.0 3.0-6.0 3.0-6.0 3.0-6.0 3.0-6.0 4.0-14.0 4.0-8.0	150x150 160x160 180x180 200x200 220x220 250x250 280x280 300x300 350x350 400x400 450x450 500x500	4.0-8.0 4.0-8.0 4.0-8.0 5.0-10.0 8.0-25.0 8.0-25.0 8.0-25.0 8.0-25.0 8.0-25.0 8.0-25.0 8.0-25.0 8.0-25.0
